Product Information
- Article

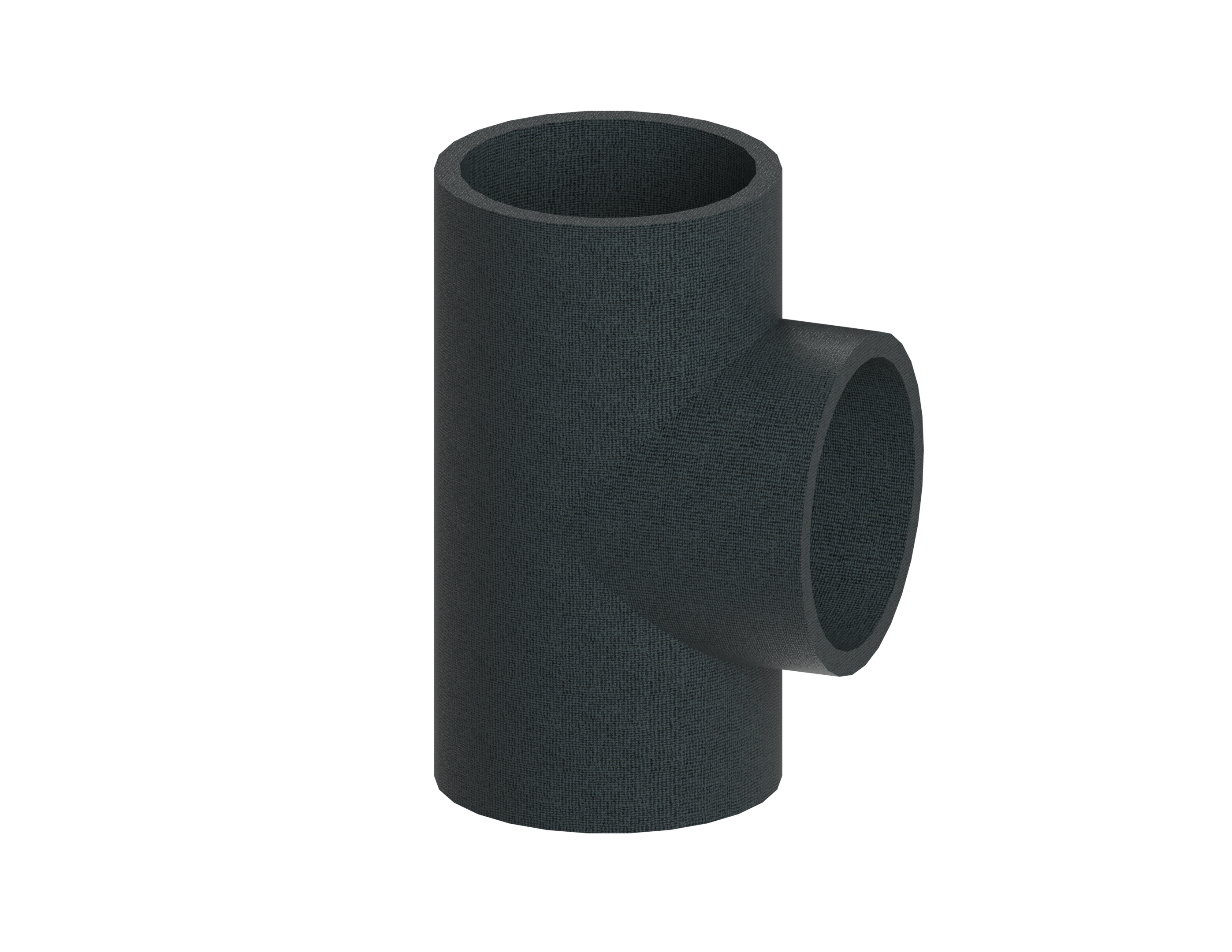

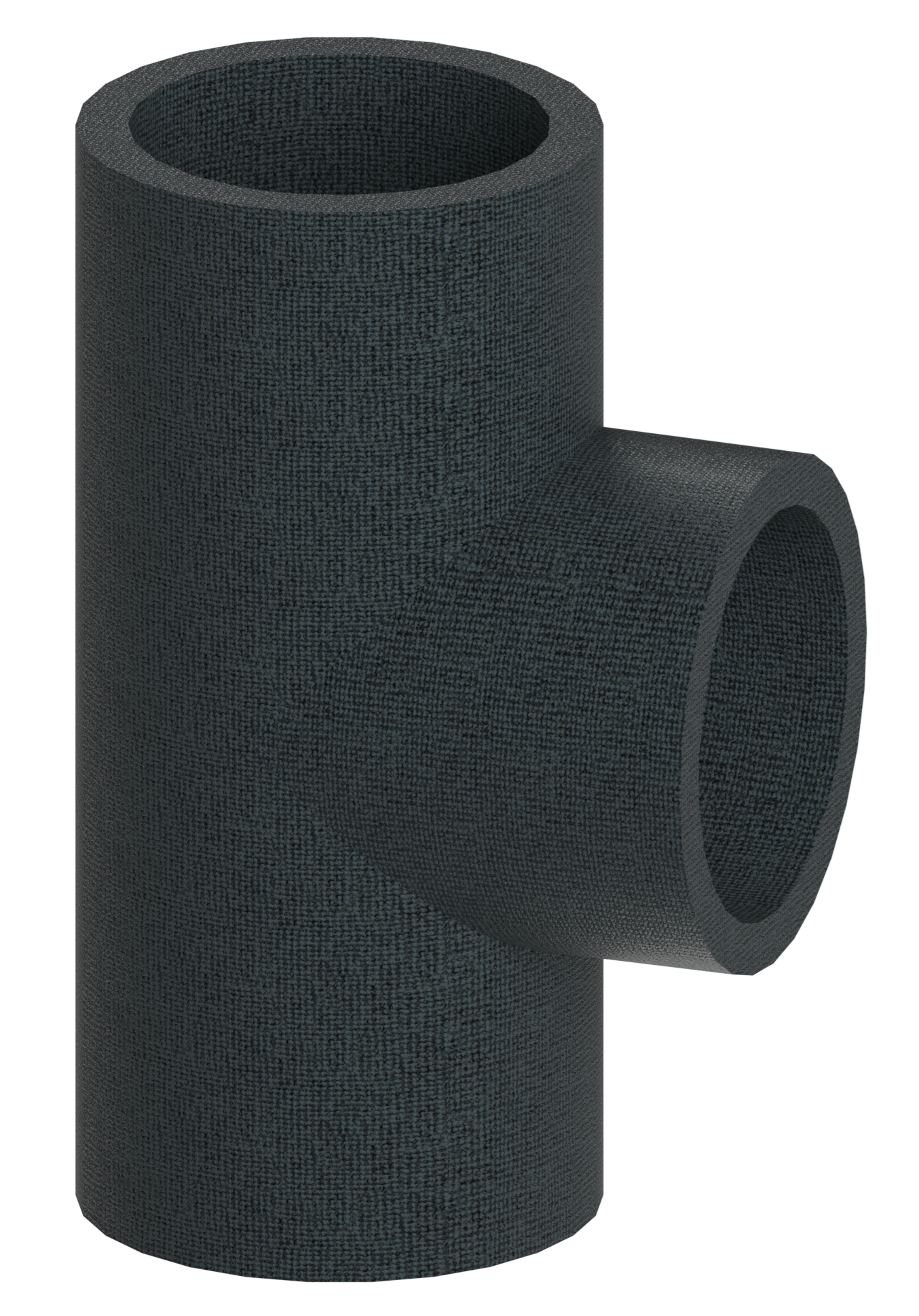

- Burgerhout EasyAir T-Piece EPS 180
- Article Number
- 400480548 (08712798543738)
- Product Code
- 400480548 (08712798543738)
- Manufacturer
- Burgerhout (8712798000002)
- Weight
- 0.195
- Packaging
- Carton
Characteristics
- Color
- Gray
- Material
- EPS
Product Features
- Colour
- Gray
- Intended use
- Ventilation
- Connection diameter
- #22
- Material
- EPS
- Product Technology
- T-stukken
Product Features
- Model
- Hard foam duct (full insulation)
- Material duct
- Plastic
- Material quality duct
- Other
- Wall thickness duct
- 15.5 mm Millimetre
- Production method
- Seamless
- Material insulation
- Expanded polystyrene (EPS)
- Insulation thickness
- 15.5 mm Millimetre
- Outer surface protection
- Untreated
- Inner surface protection
- Untreated
- Perforated inner wall
- No
- Outside colour
- Grey
- Design form
- T-piece
- Reverse (negative) T-piece model
- No
- Nominal duct diameter, connection 1
- 180.0 mm Millimetre
- Connection 1
- Duct end
- Nominal duct diameter, connection 2
- 180.0 mm Millimetre
- Connection 2
- Duct end
- Nominal duct diameter, connection 3
- 180.0 mm Millimetre
- Connection 3
- Duct end
- With push-on profile
- No
- With push-on clamp
- No
- With pre-mounted seal
- No
- Eccentric
- No
- Angle
- 90.0 ° Degrees
- Embeddable in concrete
- No
- Heat resistance Rd
- 0.5 (m².K)/W Square metre Kelvin per Watt
- Anti-bacterial treatment
- No
- Antistatic version
- No
