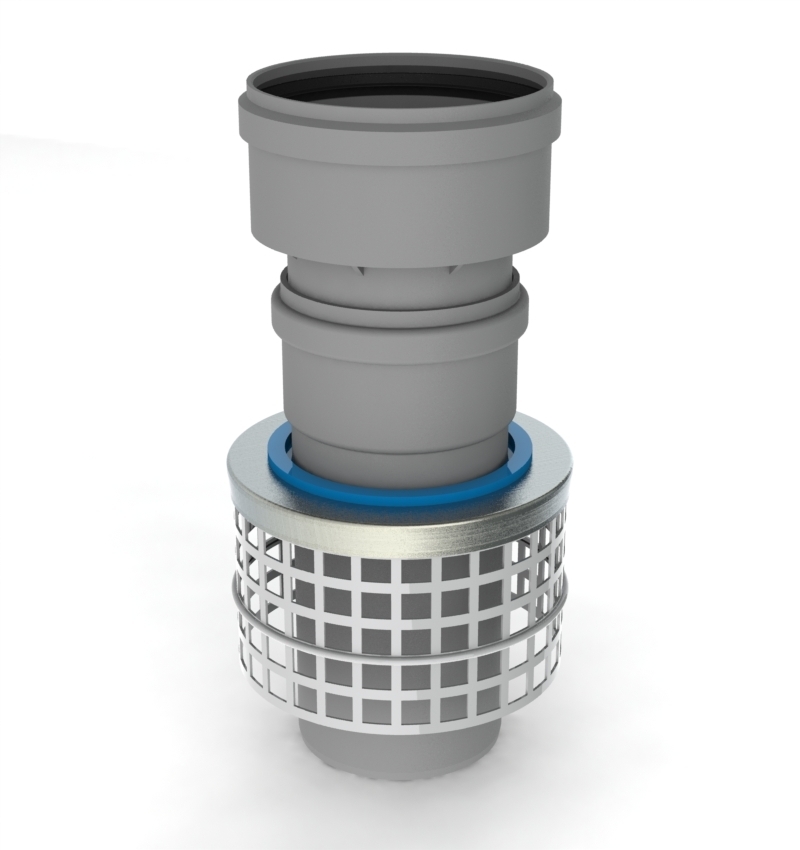

Burgerhout Multiline Connection kit PP 80/125

Product Features

Shape

Coupling piece

Material

Plastic

Material quality

Polypropylene (PP)

Surface protection

Untreated

Surface treatment

Untreated

Max. medium temperature (continuous)

120.0 °C Degrees celsius

Positive (overpressure)

Yes

Wet (condensing)

Yes

Negative (negative pressure)

No

Dry (non-condensing)

No

Outer diameter connection 1

105.0 mm Millimetre

Outer diameter connection 2

80.0 mm Millimetre

Inner diameter, connection 1

101.0 mm Millimetre

Inner diameter, connection 2

76.0 mm Millimetre

Wall thickness

2.0 mm Millimetre

Connection 1

Sleeve

Connection 2

Insert end

Production method

Seamless

Only suitable for air supply

No

Colour

Grey

With measuring connector

No

With pressure switch

No

With temperature limit

No

With lip ring

Yes

Number of lips

1.0

Position of lips

Straight

Material sealing

Ethylene-propylene diene monomer rubber (EPDM)

With clamping strip

No

Adjustable

No

Length of connection 1

55.0 mm Millimetre

Working length connection 1

55.0 mm Millimetre

Length of connection 2

200.0 mm Millimetre

Working length connection 2

150.0 mm Millimetre
